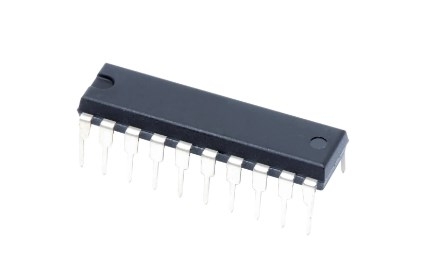

SN 74LS240NE - 74LS240NE
Κωδικός προϊόντος: 100.101.1860Διαθεσιμότητα: Διαθέσιμο
Buffers & Line Drivers Octal Buffers and Line Drivers
Τιμή: 2,50 €
Spesifications:
- Manufacturer: Texas Instruments
- Manufacturer: Texas Instruments
- Product Category: Buffers & Line Drivers
- RoHS: Details
- Number of Input Lines: 8 Input
- Number of Output Lines: 8 Output
- Polarity: Inverting
- High Level Output Current: - 15 mA
- Low Level Output Current: 24 mA
- Quiescent Current: 26 mA
- Supply Voltage - Max: 5.25 V
- Supply Voltage - Min: 4.75 V
- Operating Supply Current: 44 uA
- Minimum Operating Temperature: 0 C
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-20
- Function: Buffer/Line Driver
- Height: 4.57 mm
- Length: 24.33 mm
- Operating Temperature Range: 0 C to + 70 C
- Output Type: 3-State
- Series: SN74LS240
- Technology: Bipolar
- Width: 6.35 mm
- Brand: Texas Instruments
- Logic Family: LS
- Logic Type: Bipolar
- Number of Channels: 8
- Supply Current - Max: 44 mA
- Input Signal Type: Single-Ended
- Operating Supply Voltage: 5 V
- Product Type: Buffers & Line Drivers
- Propagation Delay Time: 18 ns at 5 V
- Factory Pack Quantity: 20
- Subcategory: Logic ICs
- Unit Weight: 1,199 g
SN74LS240NE
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: SN
