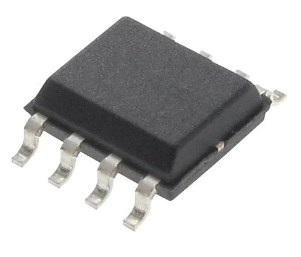

FDS 4935A
Κωδικός προϊόντος: 100.105.0037Διαθεσιμότητα: Διαθέσιμο
MOSFET -30V Dual
Τιμή: 2,00 €
Spesifications:
- Manufacturer: ON Semiconductor
- Manufacturer: ON Semiconductor
- Product Category: MOSFET
- RoHS: Details
- Technology: Si
- Mounting Style: SMD/SMT
- Package/Case: SO-8
- Transistor Polarity: P-Channel
- Number of Channels: 2 Channel
- Vds - Drain-Source Breakdown Voltage: 30 V
- Id - Continuous Drain Current: 7 A
- Rds On - Drain-Source Resistance: 23 mOhms
- Vgs - Gate-Source Voltage: - 20 V, + 20 V
- Vgs th - Gate-Source Threshold Voltage: 3 V
- Qg - Gate Charge: 21 nC
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 175 C
- Pd - Power Dissipation: 2 W
- Channel Mode: Enhancement
- Tradename: PowerTrench
- Packaging: Cut Tape
- Packaging: MouseReel
- Packaging: Reel
- Configuration: Dual
- Height: 1.75 mm
- Length: 4.9 mm
- Series: FDS4935A
- Transistor Type: 2 P-Channel
- Type: MOSFET
- Width: 3.9 mm
- Brand: ON Semiconductor / Fairchild
- Forward Transconductance - Min: 19 S
- Fall Time: 25 ns
- Product Type: MOSFET
- Rise Time: 10 ns
- Subcategory: MOSFETs
- Typical Turn-Off Delay Time: 48 ns
- Typical Turn-On Delay Time: 13 ns
- Part # Aliases: FDS4935A_NL
- Unit Weight: 187 mg
FDS 4935A
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: FDS
