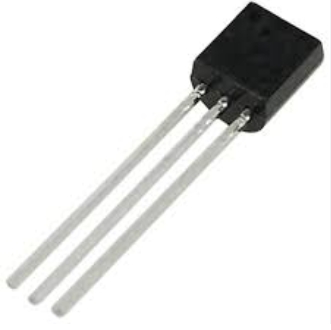

2SA 984
Κωδικός προϊόντος: 100.102.0327Διαθεσιμότητα: Διαθέσιμο
Silicon PNP-transistor. NF-HiFi-E, 0.5A, 60V.
Τιμή: 1,00 €
Type Designator: 2SA984
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 18 pF
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
Package: TO92
Κατασκευαστής: n/a Κατηγορία: 2SA
