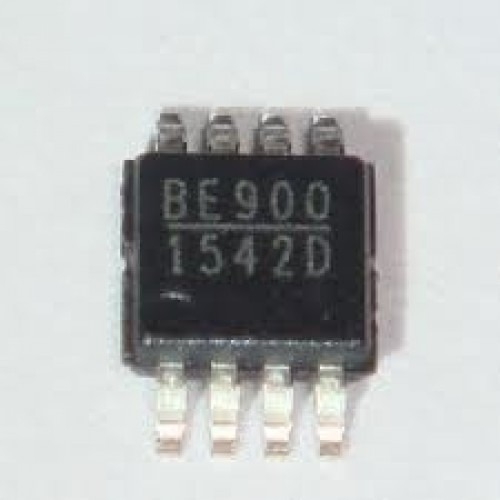

MP 1542D
Κωδικός προϊόντος: 100.101.1777Διαθεσιμότητα: Διαθέσιμο
The MP1542 is a current mode step up converter with a 2A, 0.18Ω internal switch to provide a highly efficient regulator with fast response.
Τιμή: 1,50 €
Features:
- 2A, 0.18Ω, 25V Power MOSFET
- Uses Tiny Capacitors and Inductors
- Pin Selectable 700kHz or 1.3MHz FixedSwitching Frequency
- Programmable Soft-Start
- Operates with Input Voltage as Low as 2.5V and Output Voltage as High as 22V
- 12V at 500mA from 5V Input
- UVLO, Thermal Shutdown
- Internal Current Limit
- Available in 8-Pin MSOP Packages
Applications:
- LCD Displays
- Portable Applications
- Handheld Computers and PDAs
- Digital Still and Video Cameras
MP 1542D
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: MP
