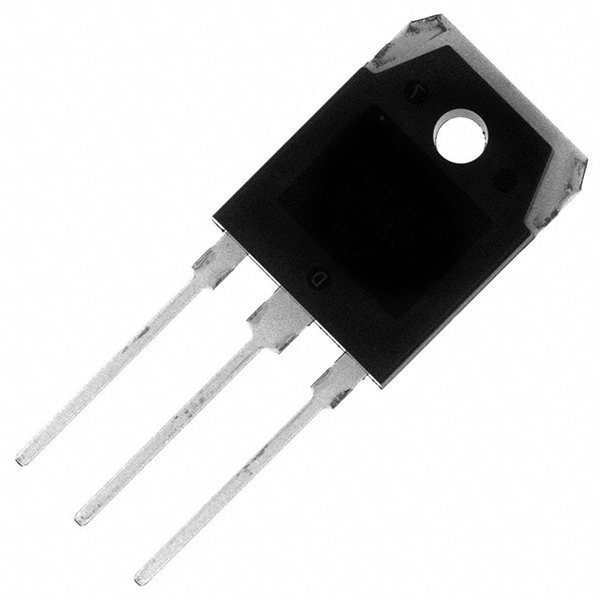

2SD 716
Κωδικός προϊόντος: 100.102.0909Διαθεσιμότητα: Διαθέσιμο
Silicon NPN high frequency, high power transistors in a plastic envelope, primarily for use in audio and general purpose 100v 60w 6a.
Τιμή: 3,00 €
Χαρακτηριστικά:
Type Designator: 2SD716
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 6 MHz
Collector Capacitance (Cc): 100 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Noise Figure, dB: -
Package: TO247
2SD 716
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 2SD
