OLED SCREEN
Κωδικός προϊόντος: 100.154.0085Διαθεσιμότητα: Αναμένεται

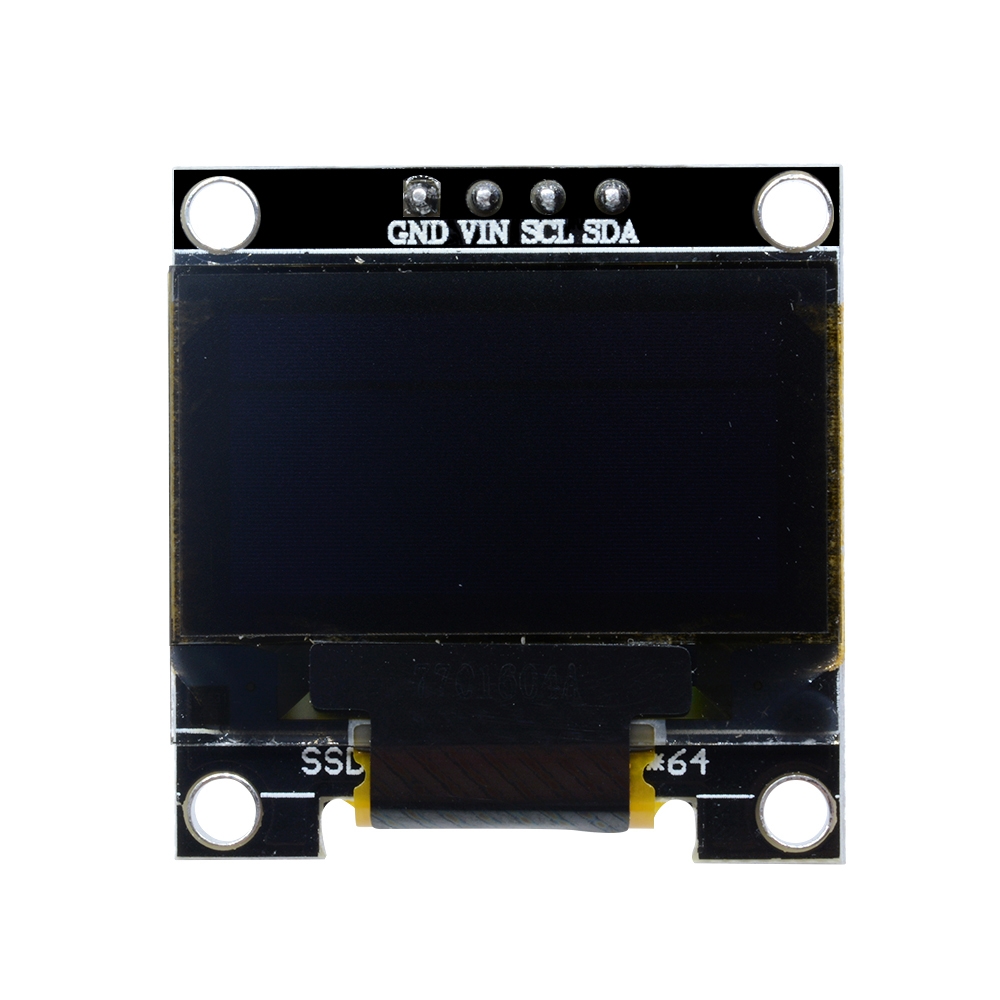

Yellow blue oled 128*64 LED display module for Arduino, supports many control chip. Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W. Super high brightness and contrast are adjustable. With embedded driver/controller. Interface type is IIC
Τιμή: 12,00 €
Description:
Yellow blue oled 128*64 LED display module for Arduino, supports many control chip. Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W. Super high brightness and contrast are adjustable. With embedded driver/controller. Interface type is IIC
- Pin Definition: GND, VCC ,SCL, SDA
- Pins: 4 pins
- Voltage: 3V ~ 5V DC
- Working Temperature: -30 ℃ ~ 70 ℃
- Character Colors: White/Blue/Yellow and Blue(Optional)
- Drive Duty: 1/64 Duty
- High resolution: 128 * 64
- Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
- Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
- Driver IC: SH1106
- Note: The real color of the item may be slightly different from the pictures shown on website caused - by many factors such as brightness of your monitor and light brightness
Κατασκευαστής: n/a Κατηγορία: ARDUINO
