31.11.9.006.4011
Κωδικός προϊόντος: 100.119.0174Διαθεσιμότητα: Διαθέσιμο

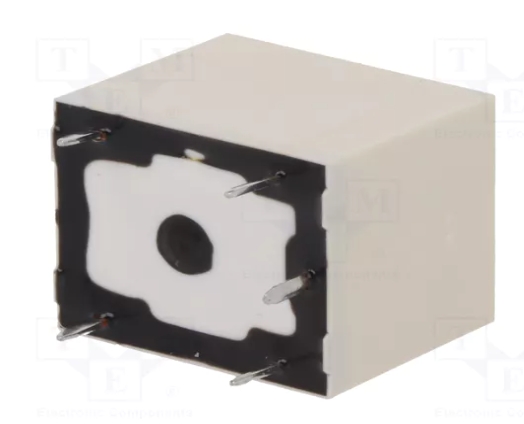

Relay τυπωμένου 1 επαφής 6vdc 10a Finder.
Τιμή: 4,50 €
Specification:
- Manufacturer: FINDER
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 6V DC
- Contact current max.: 15A
- AC contacts rating @R (at resistive load) at resistive load: 10A / 250V AC
- DC contacts rating @R (at resistive load) at resistive load: 10A / 30V DC
- Relay series: 36.11
- Switched voltage: max. 220V DC, max. 250V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 100Ω
- Coil voltage min.: 4.5V DC
- Coil voltage max.: 7.8V DC
- Body dimensions: 19x15.5x15.5mm
- Coil power consumption: 400mW
- Operating temperature: -40...85°C
- Contact material: AgSnO2
- Terminal pitch: 2mm
Κατασκευαστής: n/a Κατηγορία: 6VDC RELAY
