RY211024
Κωδικός προϊόντος: 100.119.0175Διαθεσιμότητα: Διαθέσιμο

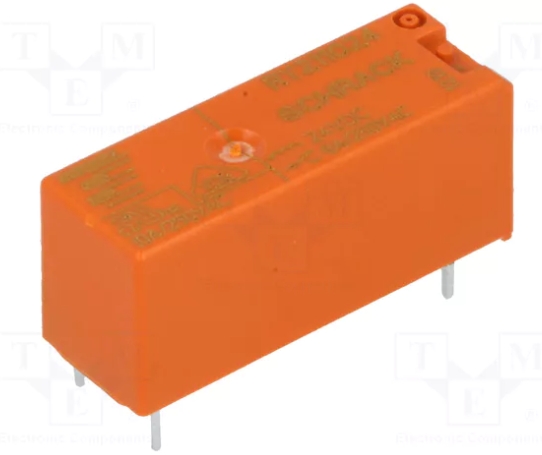

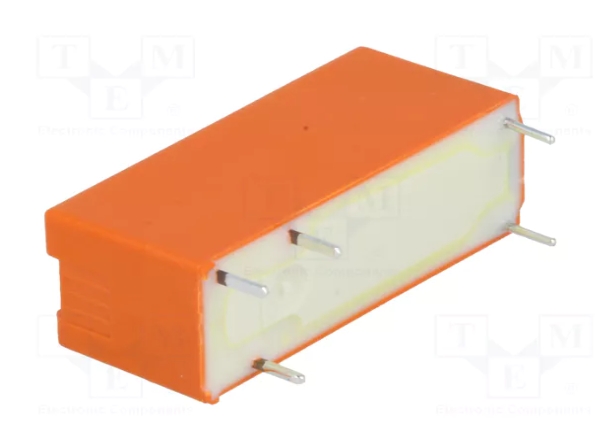

Relay τυπωμένου 1 επαφής 24vdc 8a schrack.
Τιμή: 4,50 €
Specification:
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 24V DC
- Contact current max.: 8A
- AC contacts rating @R (at resistive load): 8A / 250V AC
- DC contacts rating @R (at resistive load): 8A / 30V DC
- Relay series: RYII
- Switched voltage: max. 300V DC, max. 400V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 2.35kΩ
- Operate time: 9ms
- Body dimensions: 28.5x10.1x12.3mm
- Release time: 5ms
- Coil power consumption: 220mW
- IP rating: IP40
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Contact material: AgNi
- Terminal pitch: 3.2mm
- Coil current: 10.2mA
- Switching capacity: 2kVA
RY211024
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 24VDC RELAY
