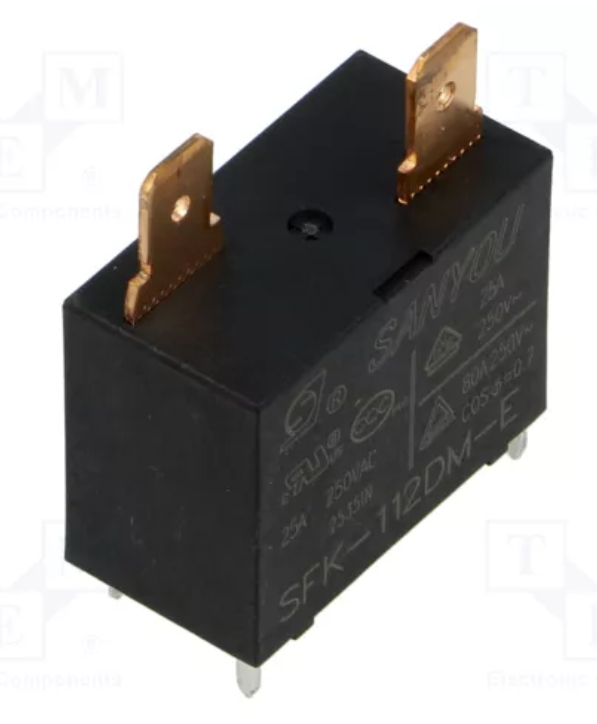

SFK-112DM-E
Κωδικός προϊόντος: 100.119.0191Διαθεσιμότητα: Διαθέσιμο
Relay τυπωμένου 1 επαφήν 12vdc 25a Sanyou.
Τιμή: 6,00 €
Specifications:
- Manufacturer: SANYOU
- Type of relay: miniature
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- Contact current max.: 25A
- Switched voltage: max. 277V AC
- Coil voltage min.: 9V DC
- Manufacturer series: SFK
- Mounting: THT
- Body dimensions: 30.1x15.7x23.3mm
- AC contacts rating @R: (at resistive load)
- 25A / 250V AC
- Coil resistance: 160Ω
- Contact material: AgSnO2
- Leads: connectors
- Leads dimensions: 6.35x0.8mm
- Coil power consumption: 0.9W
- Operate time: 20ms
- Mechanical durability: 2000000 cycles
- Electrical life: 100000 cycles
- Switching capacity: 6925VA
- Contact rated current: 25A
- Operating temperature: -40...85°C
- Gross weight: 20.97 g
Κατασκευαστής: n/a Κατηγορία: 12VDC RELAY
