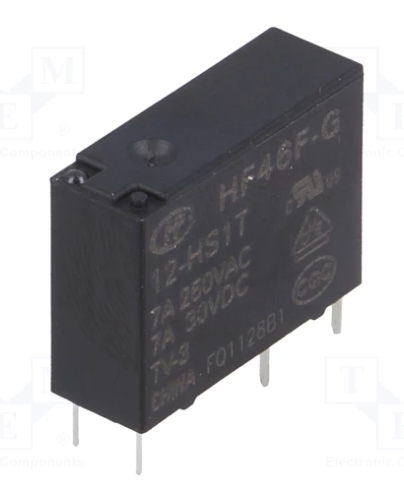

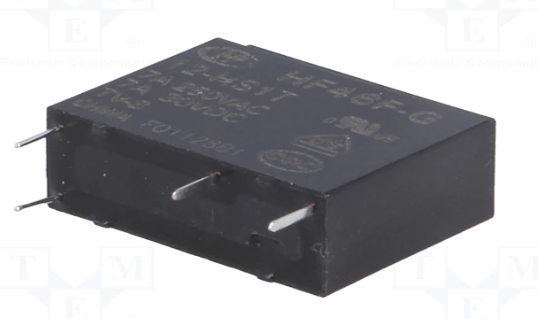

HF46F-G/012-HS1T
Κωδικός προϊόντος: 100.119.0172Διαθεσιμότητα: Διαθέσιμο
Relay τυπωμένου 1 επαφής NO 12vdc 7a Hongfa relay.
Τιμή: 4,00 €
Specification:
- Manufacturer: HONGFA RELAY
- Type of relay: electromagnetic
- Contacts configuration Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- Contact current max.: 10A
- AC contacts rating @R (at resistive load) at resistive load: 7A / 250V AC
- DC contacts rating @R (at resistive load) at resistive load: 7A / 30V DC
- Switched voltage: max. 30V DC, max. 277V AC
- Relay variant: subminiature
- Mounting: PCB
- Coil resistance: 720Ω
- Coil voltage min.: 9V DC
- Coil voltage max.: 15.6V DC
- Operate time: 10ms
- Body dimensions: 20.5x7.2x15.3mm
- Release time: 10ms
- Coil power consumption: 200mW
- Operating temperature: -40...85°C
- Contact resistance: 100mΩ
- Contact material: AgSnO2
HF46F-G/012-HS1T
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 12VDC RELAY
