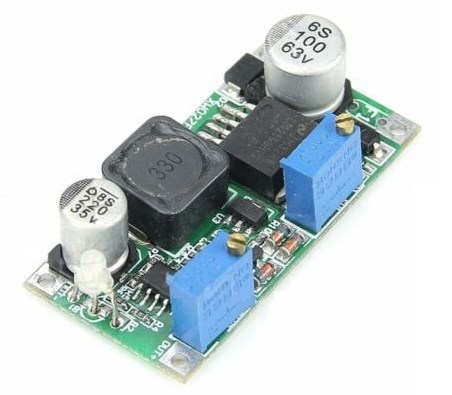

LM2596HVS
Κωδικός προϊόντος: 440.451.0230Διαθεσιμότητα: Διαθέσιμο
Step Down 60v 3a Power Converter Voltmeter.
Τιμή: 5,00 €
Features:
1. Stepless adjustment of output voltage and stepless adjustment of output current
2. LED indicator, red/green no-load under load
3. Up to 1.5V (1.16V typical) and up to 2.5A output current difference between input and output voltage
4. Temperature protection, high stability and high efficiency of output voltage
5. High-frequency DC/DC conversion, which leads to a reduction in the size of the device
Specifications:
- Input voltage: 5V-57V input voltage must be 2V higher than the output voltage
- Output current: rated current 2.5A / 3A MAX (required for heat sink)
- Output voltage: 1.25-30V (adjustable)
- Output power: 15W maximum at maximum voltage
- Output short-circuit protection: Yes, constant current (constant current setpoint)
- Input reverse polarity protection: Yes,
- Constant current range: 0.2-3A (adjustable, default transfer 1A)
- Turn signal current: constant current value * (0.1), turn lamp current constant current value linkage.
Κατασκευαστής: n/a Κατηγορία: ΕΤΟΙΜΕΣ ΚΑΤΑΣΚΕΥΕΣ
