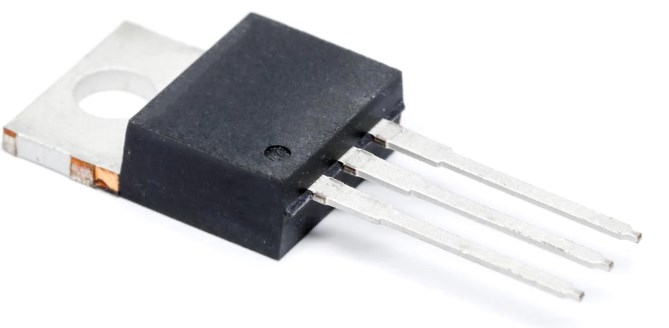

TIP 121G
Κωδικός προϊόντος: 100.102.0927Διαθεσιμότητα: Διαθέσιμο
Darlington Transistors 5A 80V Bipolar Power NPN
Τιμή: 2,00 €
Spesifications:
- Manufacturer: onsemi
- Manufacturer: onsemi
- Product Category: Darlington Transistors
- RoHS: Details
- Configuration: Single
- Transistor Polarity: NPN
- Collector- Emitter Voltage VCEO Max: 80 V
- Emitter- Base Voltage VEBO: 5 V
- Collector- Base Voltage VCBO: 80 V
- Maximum DC Collector Current: 5 A
- Maximum Collector Cut-off Current: 200 uA
- Pd - Power Dissipation: 65 W
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: - 65 C
- Maximum Operating Temperature: + 150 C
- Series: TIP121
- Brand: onsemi
- Brand: onsemi
- Continuous Collector Current: 5 A
- DC Collector/Base Gain hFE Min: 1000
- Height: 15.75 mm
- Length: 10.53 mm
- Product Type: Darlington Transistors
- Subcategory: Transistors
- Width: 4.83 mm
- Unit Weight: 2 g
TIP 121G
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: TIP
