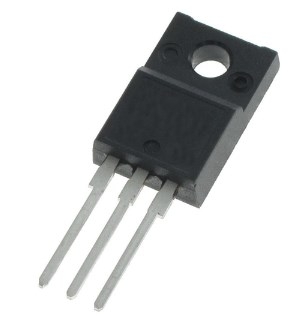

IPA80R1K0CEXKSA2
Κωδικός προϊόντος: 100.105.0045Διαθεσιμότητα: Διαθέσιμο
Mosfet 800v 5.7a
Τιμή: 4,00 €
Spesifications:
- Product Attribute Attribute Value Search Similar
- Product Attribute Attribute Value Search Similar
- Manufacturer: Infineon
- Product Category: MOSFET
- RoHS: Details
- Technology: Si
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Transistor Polarity: N-Channel
- Number of Channels: 1 Channel
- Vds - Drain-Source Breakdown Voltage: 800 V
- Id - Continuous Drain Current: 5.7 A
- Rds On - Drain-Source Resistance: 2.19 Ohms
- Vgs - Gate-Source Voltage: - 20 V, + 20 V
- Vgs th - Gate-Source Threshold Voltage: 3 V
- Qg - Gate Charge: 31 nC
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 150 C
- Pd - Power Dissipation: 32 W
- Channel Mode: Enhancement
- Tradename: CoolMOS
- Brand: Infineon Technologies
- Configuration: Single
- Fall Time: 8 ns
- Height: 16.15 mm
- Length: 10.65 mm
- Product Type: MOSFET
- Rise Time: 15 ns
- Series: CoolMOS CE
- Subcategory: MOSFETs
- Typical Turn-Off Delay Time: 72 ns
- Typical Turn-On Delay Time: 25 ns
- Width: 4.85 mm
- Unit Weight: 195 kg
IPA80R1K0CEXKSA2
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: IPA
