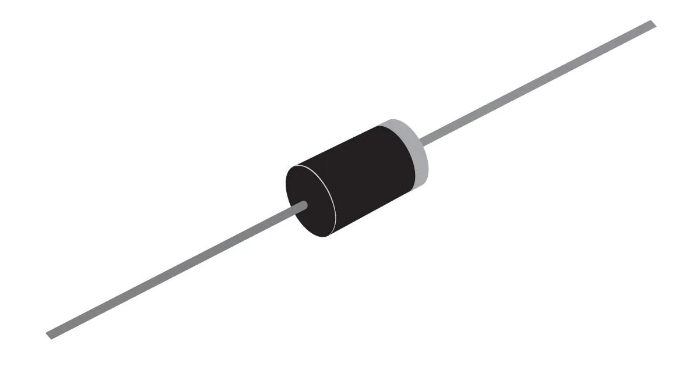

TP1.5KE250A
Κωδικός προϊόντος: 100.108.0124Διαθεσιμότητα: Διαθέσιμο
ESD Protection Diodes / TVS Diodes 1500W 214v Unidirect
Τιμή: 2,00 €
Spesifications:
- Product Attribute Attribute Value Select Attribute
- Product Attribute Attribute Value Select Attribute
- Product Category: ESD Protection Diodes / TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1 Channel
- Working Voltage: 214 V
- Termination Style: Axial
- Clamping Voltage: 344 V
- Breakdown Voltage: 237 V
- Package/Case: DO-201-2
- Ipp - Peak Pulse Current: 4.4 A
- Pppm - Peak Pulse Power Dissipation: 1.5 kW
- Vesd - Voltage ESD Contact: 8 kV
- Vesd - Voltage ESD Air Gap: 15 kV
- Product Type: TVS Diodes
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 175 C
- Series: 1.5KE
- Pd - Power Dissipation: 6.5 W
- Subcategory: TVS Diodes / ESD Suppression Diodes
- Vf - Forward Voltage: 3.5 V
- Unit Weight: 1,200 g
TP1.5KE250A
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: ΔΙΟΔΟΙ
