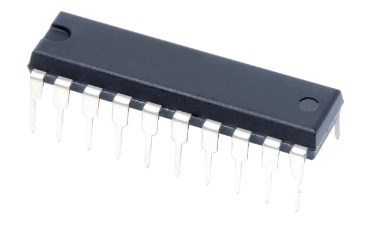

CD 74HC541
Κωδικός προϊόντος: 100.101.1905Διαθεσιμότητα: Διαθέσιμο
High-Speed CMOS Logic Octal Buffer and Line Drivers, Three-State
Τιμή: 1,50 €
Spesifications:
- Product Attribute Attribute Value Search Similar
- Manufacturer: Texas Instruments
- Product Category: Buffers & Line Drivers
- RoHS: Details
- Number of Input Lines: 8 Input
- Number of Output Lines: 8 Output
- Polarity: Non-Inverting
- High Level Output Current: - 7.8 mA
- Low Level Output Current: 7.8 mA
- Quiescent Current: 8 uA
- Supply Voltage - Max: 6 V
- Supply Voltage - Min: 2 V
- Operating Supply Current: 80 uA
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-20
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 4.57 mm
- Input Signal Type: Single-Ended
- Length: 24.33 mm
- Logic Family: HC
- Logic Type: CMOS
- Number of Channels: 8
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: - 55 C to + 125 C
- Output Type: 3-State
- Product Type: Buffers & Line Drivers
- Propagation Delay Time: 115 ns at 2 V, 23 ns at 4.5 V, 20 ns at 6 V
- Series: CD74HC541
- Subcategory: Logic ICs
- Supply Current - Max: 8 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1,199 g
