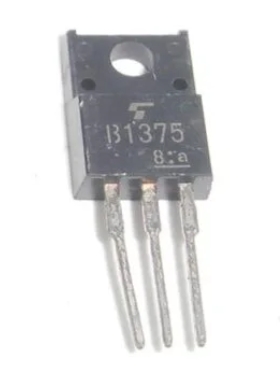

2SB 1375
Κωδικός προϊόντος: 100.102.0407Διαθεσιμότητα: Διαθέσιμο
Silicon PNP-transistor 60v 3a 25w To-220.
Τιμή: 2,00 €
Χαρακτηριστικά:
Type Designator: 2SB1375.
Material of Transistor: Si.
Polarity: PNP.
Maximum Collector Power Dissipation (Pc): 25 W.
Maximum Collector-Base Voltage |Vcb|: 60 V.
Maximum Collector-Emitter Voltage |Vce|: 45 V.
Maximum Emitter-Base Voltage |Veb|: 6 V.
Maximum Collector Current |Ic max|: 3 A.
Max. Operating Junction Temperature (Tj): 175 °C.
Transition Frequency (ft): 4.5 MHz.
Collector Capacitance (Cc): 50 pF.
Forward Current Transfer Ratio (hFE), MIN: 120.
Package: TO220.
Κατασκευαστής: n/a Κατηγορία: 2SB
