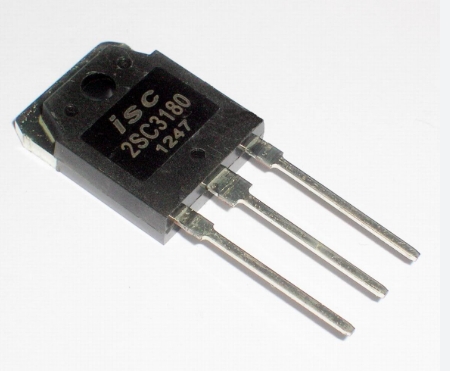

2SC 3180
Κωδικός προϊόντος: 100.102.0418Διαθεσιμότητα: Διαθέσιμο
Transistor NPN 60w 80v 6a 30mhz TO-247.
Τιμή: 4,50 €
Χαρακτηριστικά:
Type Designator: 2SC3180
Type Designator: 2SC3180
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 105 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Noise Figure, dB: -
Package: TO247
Κατασκευαστής: n/a Κατηγορία: 2SC
