KY-023
Κωδικός προϊόντος: 100.154.0014Διαθεσιμότητα: Διαθέσιμο

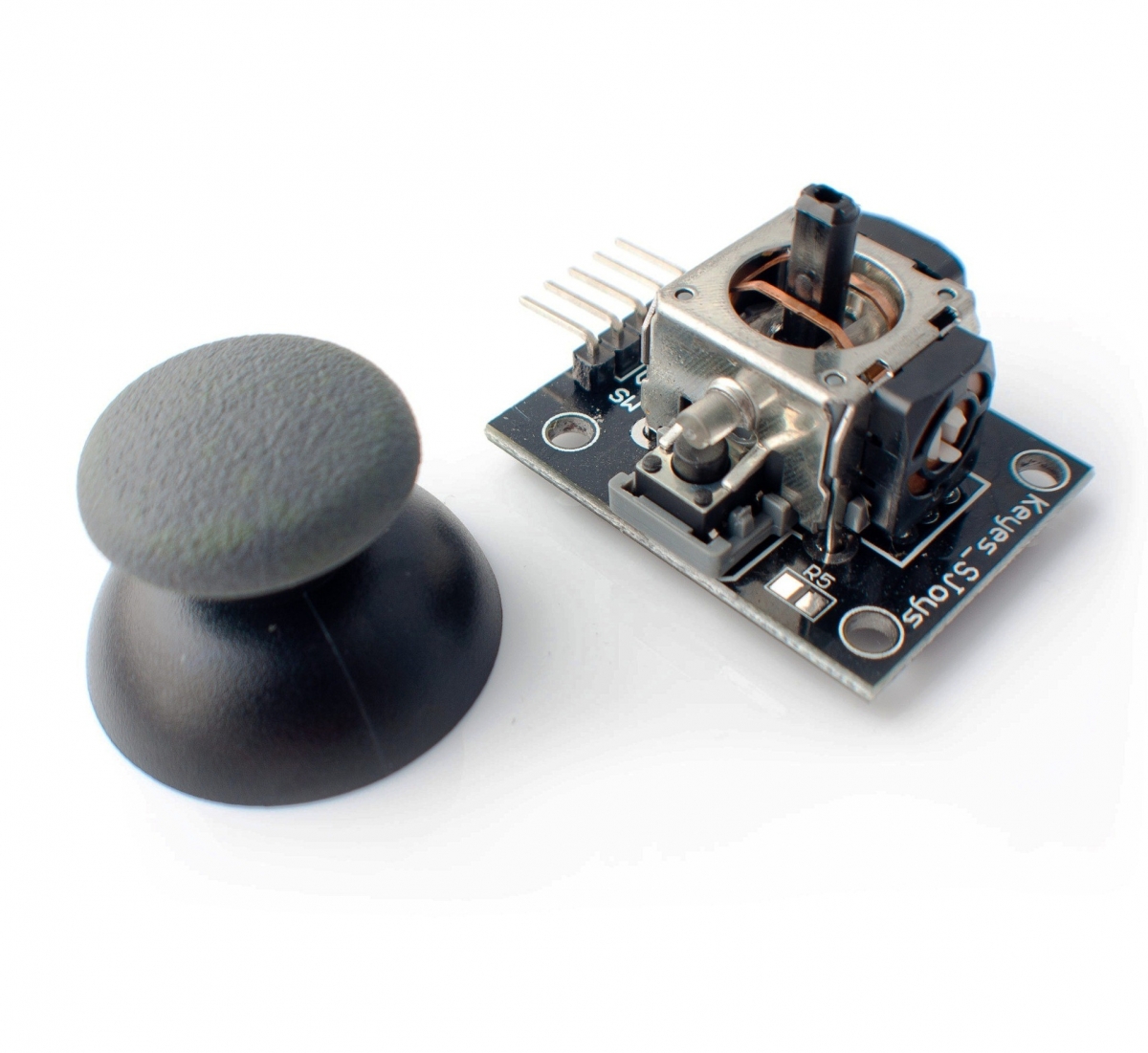

Xy-axis joystick module (arduino oem).
Τιμή: 4,00 €
Περιγραφή:
- PS2 game joystick axis sensor module
- PS2 game joystick axis sensor module
- The company produces PS2 game joystick axis sensor module consists of using original quality metal PS2 joystick potentiometer system For the (X, Y) a - 2-axis analog output and for (Z) 1 digital output channel button.
Χαρακτηριστικά:
- The joystick is a combination of 2 analoog potentiometer and a digital switch.
Test
- Arduino controller × 1
- USB data cable × 1
- PS2 Game sensor module × 1
Schematic
- Arduino GND --> Module pin -
- Arduino +5V --> Module pin +5V
- Arduino Analoog 0 --> Module VRx
- Arduino Analoog 1 --> Module VRy
- Arduino Digital --> Resistor??-->Module SW
- You need a resistor, you can use Arduino internal pullup resistor, command ( pinMode(pin, INPUT_PULLUP); ) does the job
Κατασκευαστής: n/a Κατηγορία: ARDUINO
