Κωδικός προϊόντος: 100.154.0015Διαθεσιμότητα: Διαθέσιμο

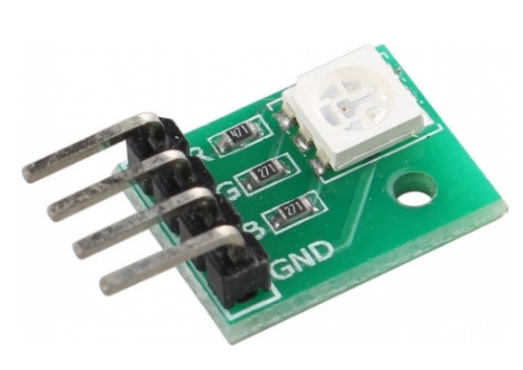

3 color led rgb module (arduino oem).
Τιμή: 1,00 €
Περιγραφή:
- RGB LED module consists of a plug-in full color LED made by R, G, B three pin PWM voltage input can be adjusted Section three primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.
- RGB LED module consists of a plug-in full color LED made by R, G, B three pin PWM voltage input can be adjusted Section three primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.
Χαρακτηριστικά:
- The use of plug-in full-color LED
- RGB trichromatic limiting resistor to prevent burnout
through the PWM adjusting three primary colors can be mixed to obtain different colors
with a variety of single-chip interface
- the working voltage: 5V
- LED drive mode: common cathode driver
Schematic
- Arduino pin 11 --> Pin R module
- Arduino pin 10 --> Pin G module
- Arduino pin 9 --> Pin B module
- Arduino pin GND --> Pin - module
- You don't need any resistors, these are already included on the module.
Κατασκευαστής: n/a Κατηγορία: ARDUINO
