KY-009
Κωδικός προϊόντος: 100.154.0018Διαθεσιμότητα: Αναμένεται

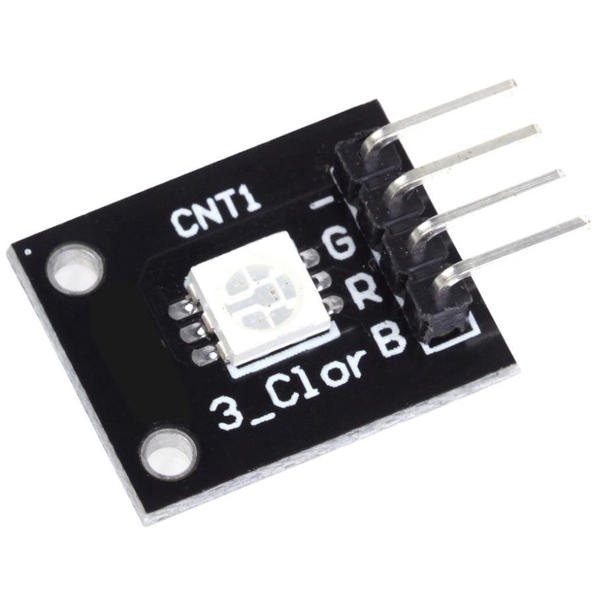

3 colors full colors led smd module (arduino oem).
Τιμή: 2,00 €
Περιγραφή:
- SMD RGB LED module consists of a full-color LED made by R, G, B three pin PWM voltage input can be adjusted. Primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.
- SMD RGB LED module consists of a full-color LED made by R, G, B three pin PWM voltage input can be adjusted. Primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.
Χαρακτηριστικά:
- Using 5050 full color LED with max current of 20mA
- Forward Voltage : Red 1.80V (2.4 max), Green,Blue 2.8V (3.6V)
- RGB trichromatic limiting resistor to prevent burnout
- Through the PWM adjusting three primary colors can be mixed to obtain different colors
- With a variety of single-chip interface
- Operating voltage: 5V
- LED drive mode: common cathode driver
Schema
- Since you can't connect the led's directly to the Arduino you will need resistors!!
- Arduino pin 9 --> 180 Ohm resistor --> Pin 'R' of KY-009 module
- Arduino pin 10 --> 100 Ohm resistor --> Pin 'G' of KY-009 module
- Arduino pin 11 --> 100 Ohm resistor --> Pin 'B' of KY-009 module
- Arduino GND --> pin '-' of KY-009 module
Κατασκευαστής: n/a Κατηγορία: ARDUINO
