KY-015
Κωδικός προϊόντος: 100.154.0006Διαθεσιμότητα: Διαθέσιμο

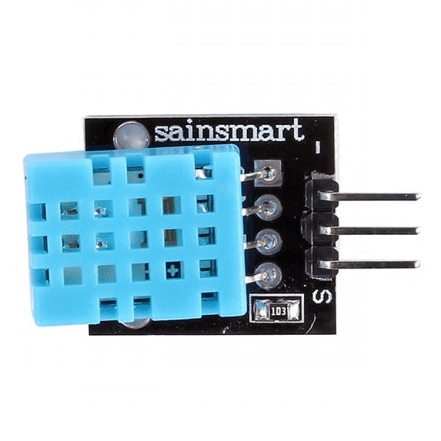

Digital temperature and humidity sensor module (αισθητήρας θερμοκρασίας και υγρασίας), (arduino oem).
Τιμή: 2,50 €
Περιγραφή:
- DHT11 digital temperature and humidity sensor is a calibrated digital signal output temperature and humidity combined sensor, which Application-specific modules capture technology and digital temperature and humidity sensor technology to ensure that products with high reliability and excellent Long-term stability. The product has excellent quality, fast response, anti-interference ability, high cost and other advantages. Single Wire serial interface that allows quick and easy system integration. Ultra-small size, low power consumption, signal transmission distance Up to 20 meters, making it to the class of applications and even the most demanding applications is the best choice. Products for the 4-pin single row Pin package, easy connection.
Χαρακτηριστικά:
- Supply voltage: 3.3 ~ 5.5V DC
- DHT11 digital temperature and humidity sensor is a calibrated digital signal output temperature and humidity combined sensor, which Application-specific modules capture technology and digital temperature and humidity sensor technology to ensure that products with high reliability and excellent Long-term stability. The product has excellent quality, fast response, anti-interference ability, high cost and other advantages. Single Wire serial interface that allows quick and easy system integration. Ultra-small size, low power consumption, signal transmission distance Up to 20 meters, making it to the class of applications and even the most demanding applications is the best choice. Products for the 4-pin single row Pin package, easy connection.
Χαρακτηριστικά:
- Supply voltage: 3.3 ~ 5.5V DC
- Humidity Range: 20-90%
- Accuracy: +/-0.2o C, +/-5%
Notes
Use
- Output: single-bus digital signal
- Measuring range: Humidity 20-90% RH, Temperature 0 ~ 50 ℃
- Accuracy: Humidity + -5% RH, temperature + -2 ℃
- Resolution: Humidity 1% RH, temperature 1 ℃
- Temperature range: 0 to 50o C
- Temperature range: 0 to 50o C
- Long-term stability: <± 1% RH / Year
Notes
- To avoid the use of the condensation conditions
long-term storage temperature 10-40 ℃, humidity below 60%
- The use of power and ground connection to be correct, so as not to damage the sensor
Use
- About DHT11 specific timing problems we can refer to its datasheet, see the following modules, such as our company He connected with the Arduino board
Schematic
- Arduino pin 8 --> Pin S module
- Arduino GND --> Pin - module
- Arduino +5 --> Pin Middle
- Hardware Requirements
- Arduino controller × 1
- USB data cable × 1
- DHT 11 module × 1
Κατασκευαστής: n/a Κατηγορία: ARDUINO
