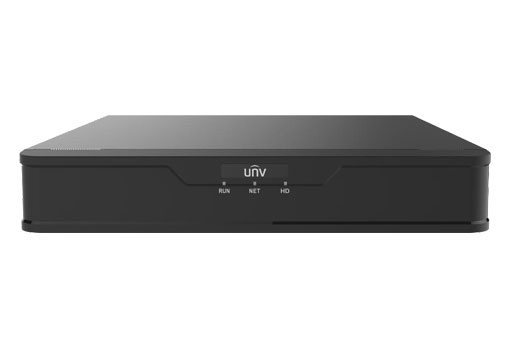

XVR301-04G
Κωδικός προϊόντος: 280.285.0078Διαθεσιμότητα: Διαθέσιμο
Καταγραφικό XVR301-04G unv 4CH bnc + 2IP έως 4MP H.264/265, 5in1, audio in 1CH , audio out 1CH, έξοδοι vga,hdmi,hdd 1sma έως 6ΤΒ Client EZ station for PC EZ View for Mobile.
Τιμή: 68,00 €
Χαρακτηριστικά:
- Model XVR301-04G XVR301-08G
- Video/Audio Input
- Analog Video Input 4-ch, BNC 8-ch, BNC
- IP Video Input 2-ch(only IP up to 6ch), each channel up to 4MP 4-ch(only IP up to 8ch), each channel up to 4MP
- Supported Analog Camera Types Support AHD input: 5MP@20fps(The first channel)
- 5MP@12fps
- 4MP@30fps(The first channel)
- 4MP@15fps
- 1080P@30fps
- 720P@60fps
- Support TVI input: 5MP@20fps(The first channel)
- 5MP@12fps
- 4MP@30fps(The first channel)
- 4MP@15fps
- 1080P@30fps
- 720P@60fps
- Support CVI input: 5MP@20fps(The first channel)
- 4MP@30fps(The first channel)
- 4MP@15fps
- 1080P@30fps
- 720P@30fps
- Support CVBS input Support AHD input: 5MP@12fps
- 4MP@15fps
- 1080P@30fps
-720P@30fps
- Support TVI input: 5MP@12fps
- 4MP@15fps
- 1080P@30fps
- 720P@30fps
- Support CVI input: 4MP@15fps
- 1080P@30fps
- 720P@30fps
- Support CVBS input
- Audio Input 1-ch, RCA
- Video/Audio Output
- VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Audio Output 1-ch, RCA
- Synchronous Playback 4-ch 8-ch
- Two-way Audio 1-ch, RCA
- Network
- Incoming Bandwidth 24Mbps 40Mbps
- Outgoing Bandwidth 48Mbps 60Mbps
- Remote Users 128
- Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
- Encoding
- Recording Resolution 5MP Lite/4MP Lite /1080P/720P/960H/D1/CIF
- Recording
- Frame Rate Main stream: 5MP Lite@12fps
- 4MP Lite@15fps
- 1080P Lite@15fps
- 1080P@15fps
- 720P@30fps
- Sub stream: D1@30fps(Max) Main stream: 5MP Lite@6fps
- 4MP Lite@8fps
- 1080P Lite@15fps
- 1080P@8fps
- 720P@15fps
- Sub stream: D1@15fps(Max)
- Hard Disk
- SATA 1 SATA interface
- Capacity Up to 6TB for each HDD
- External Interface
- Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface Rear panel: 2 x USB2.0
- General
- Power Supply 12V DC
-Power Consumption: ≤ 8 W( without HDD )
- Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non ondensing)
- Dimensions(W×D×H) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
- Weight ( without HDD ) ≤1.1 Kg ( 2.42lb )
Κατασκευαστής: n/a Κατηγορία: ΚΑΤΑΓΡΑΦΙΚΑ - DVR
