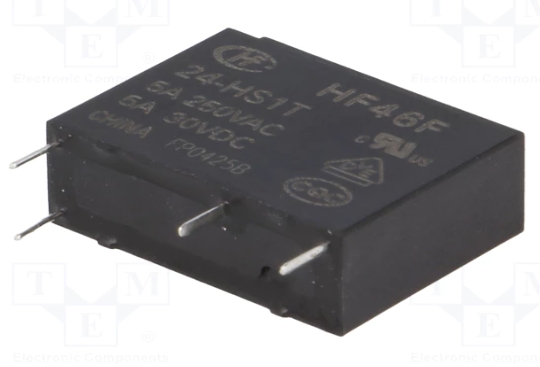

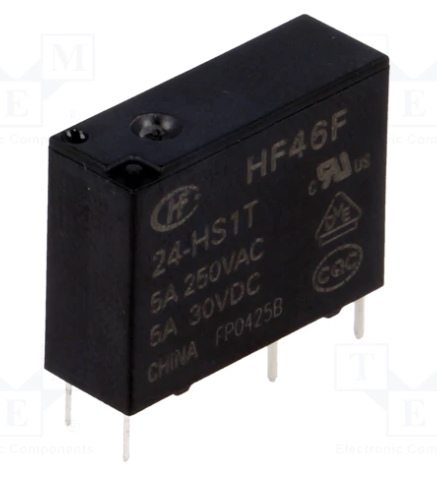

HF46F/024-HS1T
Κωδικός προϊόντος: 100.119.0171Διαθεσιμότητα: Διαθέσιμο
Relay τυπωμένου 1 επαφής 24vdc 7a Hongfa relay.
Τιμή: 4,00 €
Specification:
- Manufacturer: HONGFA RELAY
- Type of relay: electromagnetic
- Contacts configuration Contacts configuration: SPST-NO
- Rated coil voltage: 24V DC
- Contact current max.: 5A
- AC contacts rating @R (at resistive load) at resistive load: 5A / 250V AC
- DC contacts rating @R (at resistive load) at resistive load: 5A / 30V DC
- Relay series: HF46F
- Switched voltage: max. 30V DC, max. 277V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 2.88kΩ
- Coil voltage min.: 18V DC
- Coil voltage max.: 31.2V DC
- Operate time: 10ms
- Body dimensions: 20.5x7.2x15.3mm
- Release time: 10ms
- Coil power consumption: 200mW
- Operating temperature: -40...85°C
- Contact resistance: 100mΩ
- Contact material: AgNi
HF46F/024-HS1T
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 24VDC RELAY
