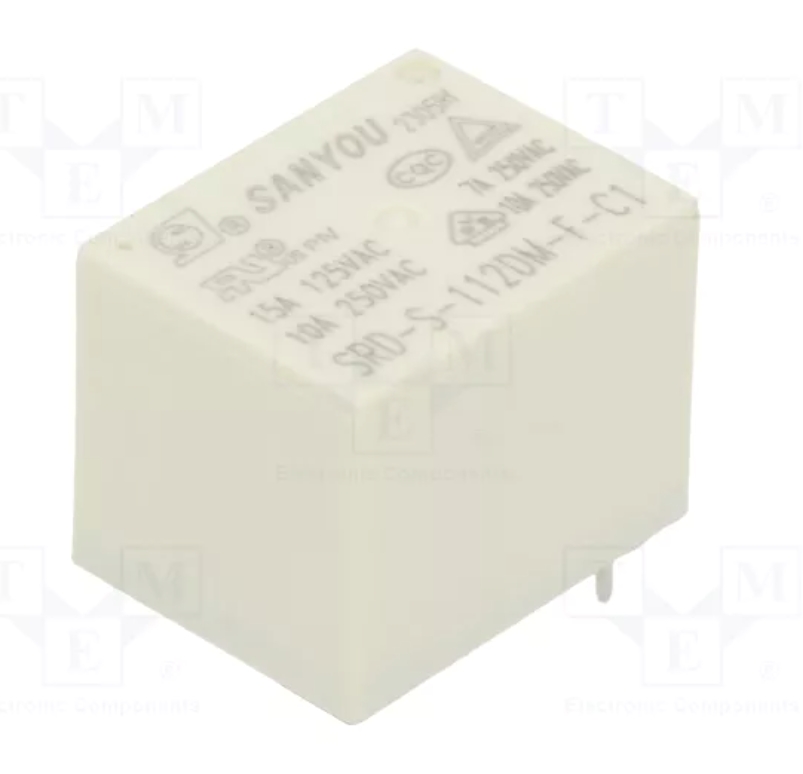

SRD-S-112DM-F-C1
Κωδικός προϊόντος: 100.119.0192Διαθεσιμότητα: Διαθέσιμο
Relay τυπωμένου 1 επαφής NO 12vdc 10a.
Τιμή: 2,00 €
Specifications
- Manufacturer: SANYOU
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- : Contact current max.: 10A
- AC contacts rating @R: (at resistive load)
- 10A / 250V AC
- Manufacturer series: SRD
- Switched voltage: max. 250V AC
- Mounting: THT
- Coil resistance: 400Ω
- Coil voltage min.: 9V DC
- Coil voltage max.: 15.6V DC
- Body dimensions: 19.6x15.5x15.4mm
- Coil power consumption: 360mW
- Contact resistance: 100mΩ
- Contact material: AgSnO2
- Current rating: 10A
- Operating temperature: -40...85°C
- Gross weight: 7.42 g
Κατασκευαστής: n/a Κατηγορία: 12VDC RELAY
