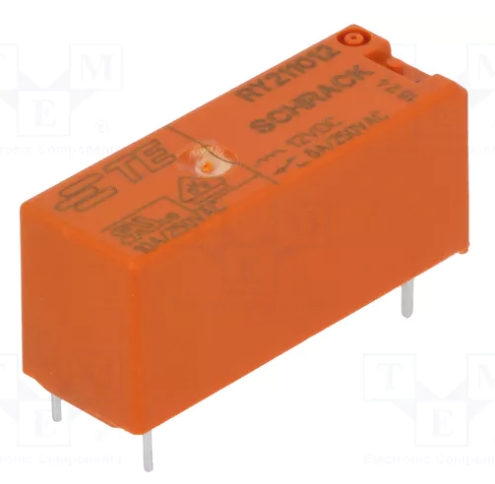

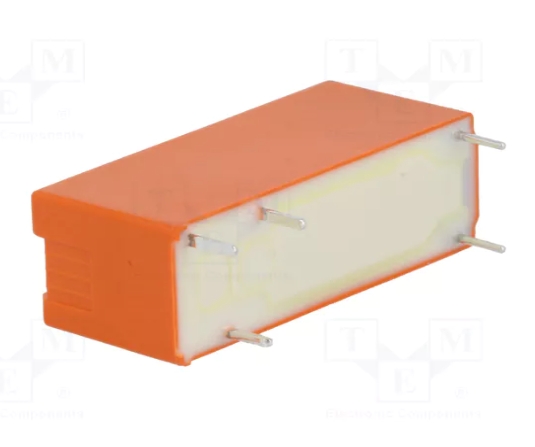

RY211012
Κωδικός προϊόντος: 100.119.0157Διαθεσιμότητα: Διαθέσιμο
Relay τυπωμένου 1 επαφής 12vdc 8a schrack.
Τιμή: 3,50 €
Specification
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- Contact current max.: 8A
- AC contacts rating @R(at resistive load): 8A / 250V AC
- DC contacts rating @R (at resistive load): 8A / 30V DC
- Relay series: RYII
- Switched voltage: max. 300V DC, max. 400V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 620Ω
- Operate time: 9ms
- Body dimensions: 28.5x10.1x12.3mm
- Release time: 5ms
- Coil power consumption: 220mW
- IP rating: IP40
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Contact material: AgNi
- Terminal pitch: 3.2mm
- Coil current: 19.16mA
- Switching capacity: 2kVA
RY211012
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 12VDC RELAY
