35.51.7.012.0010
Κωδικός προϊόντος: 100.119.0173Διαθεσιμότητα: Διαθέσιμο

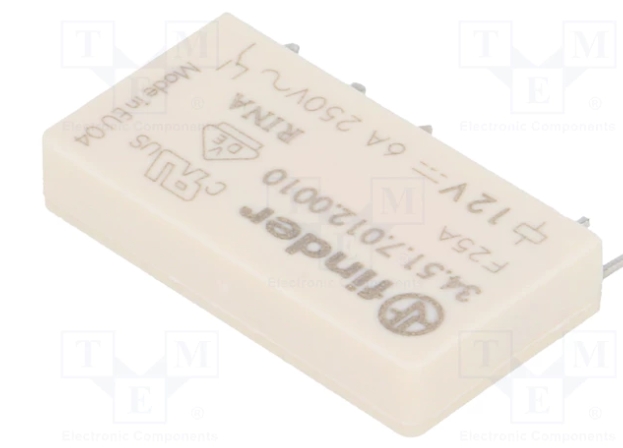

Relay τυπωμένου 1 επαφής 12vdc 6a Finder.
Τιμή: 13,00 €
- Manufacturer: FINDER
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- Contact current max.: 6A
- AC contacts rating @R (at resistive load) at resistive load: 6A / 250V AC
- DC contacts rating @R (at resistive load) at resistive load: 6A / 30V DC
- Relay series: 34.51
- Switched voltage: max. 220V DC, max. 250V AC
- Relay variant: interface
- Mounting: PCB, socket
- Coil resistance: 840Ω
- Coil voltage min.: 8.4V DC
- Coil voltage max.: 18V DC
- Body dimensions: 28x5x15mm
- Coil power consumption: 170mW
- Mechanical durability: 1000000 cycles
- Operating temperature: -40...85°C
- Contact material: AgNi
- Terminal pitch: 5mm
- Coil current: 14.2mA
35.51.7.012.0010
Αρχείο τύπου: pdf
Κατασκευαστής: n/a Κατηγορία: 12VDC RELAY
