19mm / 0.5a
Κωδικός προϊόντος: 100.149.0003Διαθεσιμότητα: Διαθέσιμο

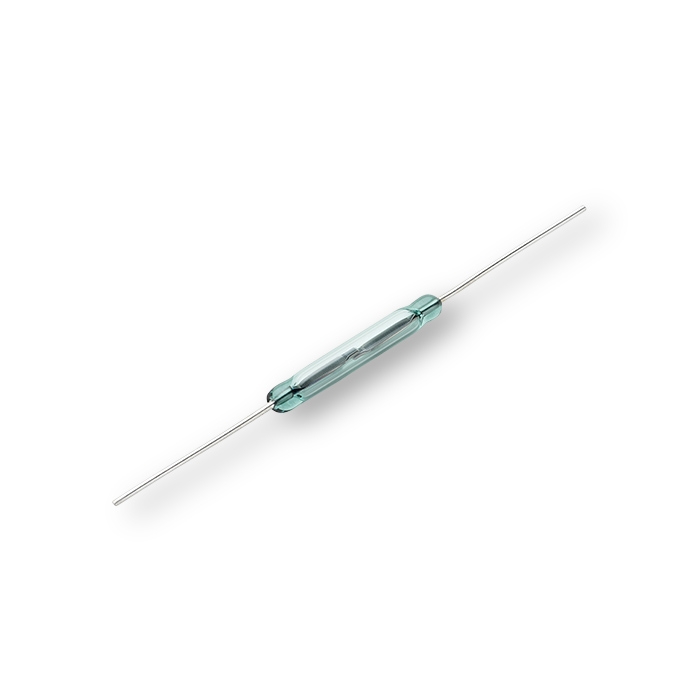

Read switch μαγνητικός διακόπτης 19mm 0.5A.
Τιμή: 1,00 €
Spesifications:
- Name:Reed Glass Magnetic Switches
- Name:Reed Glass Magnetic Switches
- Total Length:57mm
- Glass Length:18mm
- Glass Diameter:2mm
- Contact Form:A
- Max. Contact Rating:10W
- Max. Switching Voltage:300VDC
- Min. Breakdown Voltage:150VDC
- Max. Switching Current:0.5A
- Max. Initial Contact Resistance:100 mOhm
- Min. Insulation Resistance:109Ohm
- Max. Operate time:0.5 ms
- Bounce time:0.2 ms
- Max. Release time:0.3 ms
- Min. Resonant Frequency:5000 HZ
- Max. Operating Frequency:400 HZ
- Pull in Value:20-70 AT
- Min. Drop out Value:4 AT
- Max. Contact Capacitance:0.5 pF
- Electrical Life:50mV-10uA-1x106
- Resistive loads (VDC):24V-250mA-105
- Test Coil:5000T
- Material:Plastic + Metal
- Colour:Silver
Κατασκευαστής: n/a Κατηγορία: REED SWITCH
