SY3024H
Κωδικός προϊόντος: 590.593.0025Διαθεσιμότητα: Διαθέσιμο

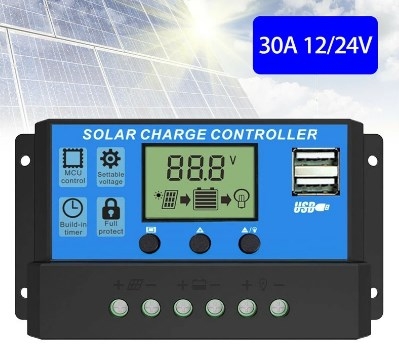

Ρυθμιστής φόρτισης 12 & 24v 30a.
Τιμή: 25,00 €
Description:
Type:Solar Power Meters
Material:ABS+component
Power:12V/24V
Display Type:LCD Display
Interface:Dual USB 5V 2.5AOutput
Feature:
Security instructions:
1. Make sure that the battery has enough voltage for the controller to recognize the type of battery before first installation.
2. The battery cable should be as short as possible to minimize losses.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
It is not suitable for nickel metal hydride batteries, lithium ions or batteries.
4. The charge controller is only suitable for the regulation of solar modules. Never connect another load source to the charge controller.
Characteristics:
1. Build-in industrial microcontroller.
2. One-key configuration, digital display, automatic memory function.
3. Fully pwm-load management load.
4. Build-in short circuit protection, open circuit protection, reverse protection, over load protection
5. Dual mosfet Reverse current protection, low heat productions.

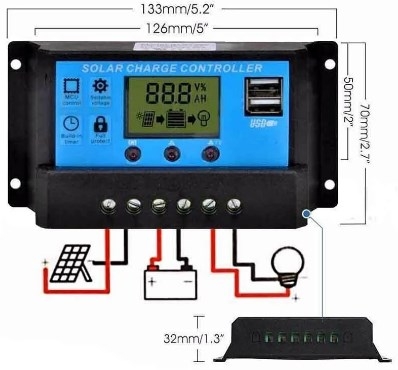

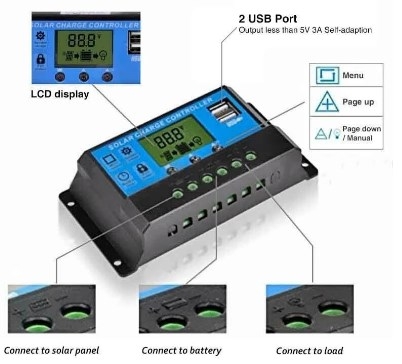

Connection of the system:
1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery.
2. Connect the photovoltaic module to the plus and minus regulator.
3. Connect to the consumer for the charge controller plus and minus.
the reverse order applies when uninstalling!
An incorrect sequence order can damage the controller!
Κατασκευαστής: n/a Κατηγορία: ΡΥΘΜΙΣΤΕΣ ΦΟΡΤΙΣΗΣ
